Basics & Concepts

VNet & DNS

  • The VNet uses Azure DNS by default.
    • NIC’s inside a VNet use the VNet DNS configuration by default.
  • An internal DNS private zone called IDNS is created automatically inside every VNet.
    • Any NIC added to the VNet gets registered within IDNS
    • The domain name for the private zone is internal.cloudapp.net

Private DNS Zone

  • Exists outside of VNets (global resource) and can be attached to them.
  • Can hold any time of record for any name. Full-range.
  • Private DNS zones can be used solely for DNS resolution or for registration:
    • Like IDNS, all NIC’s added to the VNet gets registered within the private zone.
    • A VNet can only connect to one private zone for registration.
    • A private DNS zone can connect to 100 VNets for registration and 1000 for resolution.

Network Security Groups

  • Can only be attached to a subnet or a network interface (eg. a VM).
  • App Security Group: works like a managed tag that can be referenced as source/destination in NSG rules.

The Azure “Backbone”

  • Microsoft has a network infrastructure for Azure called the “Azure backbone”.
  • Azure can “magically” route things through this backbone.
  • This backbone is how service endpoint, private endpoint, and VNet integration can keep requests needing to reach the internet.
    • Service endpoints use that magic by forwarding all requests to public IPs of storage accounts to a VirtualNetworkServiceEndpoint, which then redirects the requests through the backbone and is fully managed by Azure, the customer can’t see it.

Service Endpoints

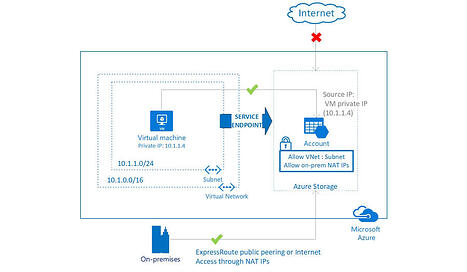

Service Endpoint Request Flow

  • Adds a record to a subnet’s route table pointing public IP addresses of services to VirtualNetworkServiceEndpoint, which chains records redirecting the request through the Azure backbone all the way to the service’s public endpoint.
  • The source IP address will switch from public to private as the request will be internal to the VNet, so the service’s firewall rules must reflect that.
  • The request’s final hop is still the public endpoint of the target service, even if the source IP is private.
  • Services such as Azure Storage, Key Vault, Cosmos DB, etc offer service endpoint.

Private Endpoints

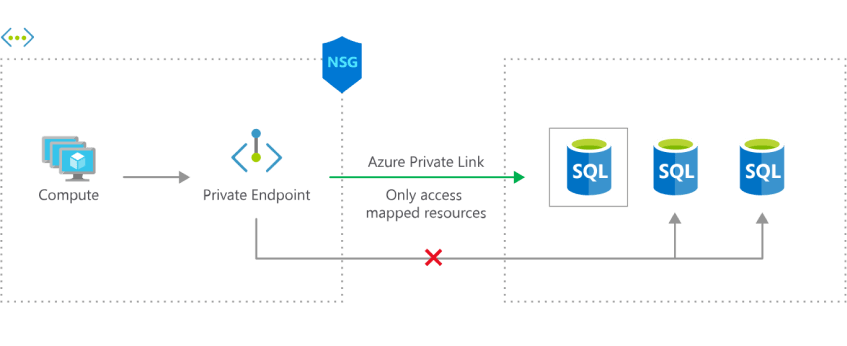

Private Endpoint Request Flow with Private Link

  • Adds a NIC to a subnet and attaches said NIC to a specific resource (eg. a blob storage).
  • It is usually coupled with Private Link, which creates a private DNS zone to map all resource requests to their correct Private Endpoint private IP addresses.

Example

nslookup test.blob.core.windows.net from a VM in Azure

  • without any integrations:
    • ⚪ test.blob.core.windows.net -> CNAME -> 🔵 blob.a1b2c3.store.core.windows.net
    • 🔵 blob.a1b2c3.store.core.windows.net -> A record -> 🔴 52.240.48.36 (public IP)
  • with Service Endpoint:
    • ⚪ test.blob.core.windows.net -> CNAME -> 🔵 blob.a1b2c3.store.core.windows.net
    • 🔵 blob.a1b2c3.store.core.windows.net -> A record -> 🔴 52.240.48.36 (public IP)
    • 🔴 52.240.48.36 (public IP) -> Subnet Route Table Entry -> 🟠 VirtualNetworkServiceEndpoint
    • 🟠 VirtualNetworkServiceEndpoint -> ???? -> ⚫ Azure Backbone
    • ⚫ Azure Backbone -> ???? -> 🔴 52.240.48.36 (????)
  • with Private Link:
    • ⚪ test.blob.core.windows.net -> CNAME -> 🟡 test.privatelink.blob.core.windows.net
    • 🟡 test.privatelink.blob.core.windows.net -> CNAME -> 🔵 blob.a1b2c3.store.core.windows.net
    • 🔵 blob.a1b2c3.store.core.windows.net -> A record -> 🔴 52.240.48.36 (public IP)
  • with Private Link and Private Endpoint:
    • ⚪ test.blob.core.windows.net -> CNAME -> 🟡 test.privatelink.blob.core.windows.net
    • 🟡 test.privatelink.blob.core.windows.net -> A record (Azure Private DNS) -> 🟢 10.0.1.4

From the results above, it may seem that if you have a Private Endpoint, you can bypass PrivateLink and just create an Azure Private DNS that points ⚪ test.blob.core.windows.net to 🟢 10.0.1.4. It would work, but for that to happen the Private DNS zone would have to be at the blob.core.windows.net, and you’d then be expected to create a record for each Blob Storage that the VNet attached to the Private DNS zone would like to connect to. For example, if a machine also wanted to connect to second-test.blob.core.windows.net, it would be directed to resolve with the Private DNS zone, which would need to be manually configured. It is often more sensible to create a Private DNS zone at the privatelink.blob.core.windows.net level.

On-premises considerations

  • Azure Private DNS zones are available globally, you can connect any VNet in the world to it for link resolution, but you cannot connect to it from on-premises.
  • You can deploy a DNS forwarder in a VNet, then create a record in the local DNS (on-prem) to point any privatelink.blob.core.windows.net requests to the DNS forwarder, which can then talk to the Private DNS zone.
  • Optionally, the records in the Private DNS zone can be recreated manually on local DNS.
  • Useful in cases virtual networks cannot be peered (eg. 3rd party services, CIDR block overlap, etc).
  • The host VNet deploys PLS internally in its own subnet. PLS will receive external requests and forward them to a Standard Load Balancer.
  • The PLS deployment can have up to 8 IP addresses in the VNet, and it connects to a Front End IP address of the Load Balancer.

Questions

  • Is the VirtualNetworkServiceEndpoint a NIC with private IP? Is there a DNS record for VirtualNetworkServiceEndpoint? What does it look like?
  • What does a traceroute of a request to the public IP of a service looks like compared a request to VirtualNetworkServiceEndpoint?
  • Does the Private Endpoint NIC get attached directly to the resource server?
  • How does Private Endpoint DNS work without Private Link?
  • How does a private DNS zone get linked to a VNet? VNet’s route table?
