Kubernetes Basics

References

GitHub - fhsinchy/kubernetes-handbook-projects

Useful Code Snippets

# Create 'pod/<pod_name>'
# Run <image_name> inside pod
kubectl run <pod_name> \
--image=<image_name> \
--port=80

# 'ls -la' for k8s
kubectl get pod/service

# Create 'service/<pod_name>'
# Run load balancer as a service
kubectl expose pod <pod_name> \
--type=LoadBalancer \
--port=80

# Delete resource based on type and name
kubectl delete <type> <name>

Basics

🚢 Container orchestration is the process of automating the deployment, management, scaling, and networking tasks of containers.

Architecture

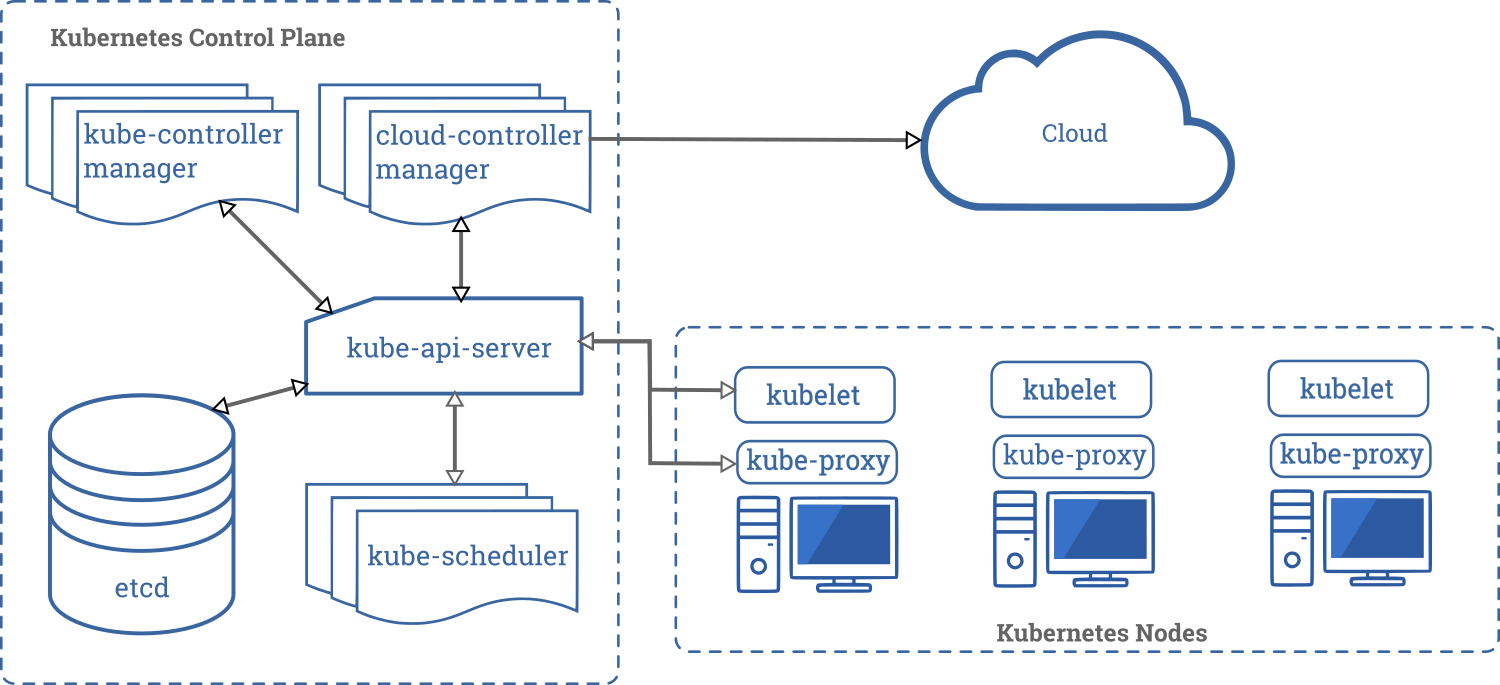

Kubernetes Architecture

kubectl: K8s CLI tool to communicate with your cluster via API
node: the machine, virtual or physical, that hosts the pods. Usually refers to worker nodes that run the containerized workloads, but could also refer to control plane nodes (centralized API, cluster management).
- kubelet: primary agent in a node, does things such as start pods & containers or register the node with the apiserver. Receives instructions from the control plane, keeps etcd updated
- kube-proxy: runs on each node to maintain network rules. Any network request that reaches a service inside the cluster passes through the kube-proxy service
control plane: cluster management
- etcd: data store that maintains a record of the state of the cluster in a distributed key-value store
- kube-scheduler: queries state of the cluster (at etcd) to schedule/assign workloads to worker nodes, making sure no server is overloaded
- kube-api-server: gateway to query and interact with cluster. Validates and processes requests delivered using client libraries like kubectl
- cloud-controller-manager: interacts with cloud provider’s (GKE, EKS) API. Keeps local and cloud interactions isolated
- kube-controller-manager: responsible for controlling the state of the cluster. Implements and tracks the lifecycle of the controllers deployed to the cluster. Main workloads managed by kube-controller-manager:
  - Deployment: declarative and good for managing stateless apps (pods are interchangeable and replaceable), it matches the current state of your cluster to the desired state mentioned in the Deployment manifest (YAML). e.g. If you create a deployment with 1 replica, it will check that the desired state of ReplicaSet is 1 and current state is 0, so it will create a ReplicaSet, which will further create the pod.
  - StatefulSet: lets you run 1+ pods that track state in some manner. Helps match pods with persistent volumes.
  - DaemonSet: ensures that the pod specified via YAML runs on all the nodes of the cluster. If a node is added/removed from a cluster, DaemonSet automatically adds/deletes the pod. e.g. Installing a monitoring agent on each node.

Objects

pods: self-contained, easily replicable objects. Can host a container or a group of (very closely related — more than back-end app + db) containers with shared network IP address and filesystem volumes, meant to run a single instance of an application.
services: since pods are ephemeral (destroyed and replaced, not recycled — new IP every time), a service is an abstraction that groups a logical set of pods and presents them as a single entity, e.g. LoadBalancer, ClusterIP, NodePort, ExternalName
- LoadBalancer: exposes a group of pods as one entity to the outside (of the cluster). The pod(s) become(s) exposed on the port specified. Can be accessed via minikube service <service_name>, which accesses the cluster’s IP + the ephemeral exposed port, which is mapped to the port exposed by the load balancer.
- ClusterIP: same as LoadBalancer but only within the cluster
Controllers: non-terminating control loops that watch the state of the cluster and make/request changes accordingly. There are controllers to manage each type of workload supported by Kubernetes.

Declarative App Example

Directory Tree

src /
- (app code)

k8s /

example-pod.yaml

apiVersion: v1 # k8s API version
kind: Pod # object type
metadata: # useful for future referencing
    name: example-pod
    labels: # services select objects via labels
    component: web
spec: # specify state wanted for object
    containers:
    - name: example
    image: example/latest
    ports:
    - containerPort: 80

example-lb-service.yaml

apiVersion: v1
kind: Service
metadata:
    name: example-lb-service
spec:
    type: LoadBalancer # other options: ClusterIP, NodePort, ExternalName
    ports:
    - port: 80 # port for others to access LB pod
    targetPort: 80 # containers' port (must match)
    selector: # ID objects connected to the service
    component: web

Dockerfile

# copies the whole directory into node image directory
# installs package.json with npm, then runs build
# copies compiled app into nginx image with port 80 exposed
# after that, image can run as container with port 80 publicly accessible

index.html
package.json

Execution

  # Both 'apply' commands can be consolidated with 'kubectl apply -f <directory>'

  kubectl apply -f example-pod.yaml

  # pod/example-pod created

  kubectl get pod

  # NAME         READY   STATUS    RESTARTS   AGE
  # example-pod   1/1     Running   0          3m3s

  kubectl apply -f example-lb-service.yaml

  # service/example-lb-service created

  kubectl get service

  # NAME                 TYPE           CLUSTER-IP       EXTERNAL-IP   PORT(S)        AGE
  # example-lb-service   LoadBalancer   10.107.231.120   <pending>     80:30848/TCP   7s

  # Example if running locally with minikube

  minikube service example-lb-service

  # |-----------|--------------------|-------------|-----------------------------|
  # | NAMESPACE |        NAME        | TARGET PORT |             URL             |
  # |-----------|--------------------|-------------|-----------------------------|
  # | default   | example-lb-service |          80 | http://192.168.99.101:30848 |
  # |-----------|--------------------|-------------|-----------------------------|
  # ?  Opening service default/example-lb-service in default browser...

Multi-Container App Example

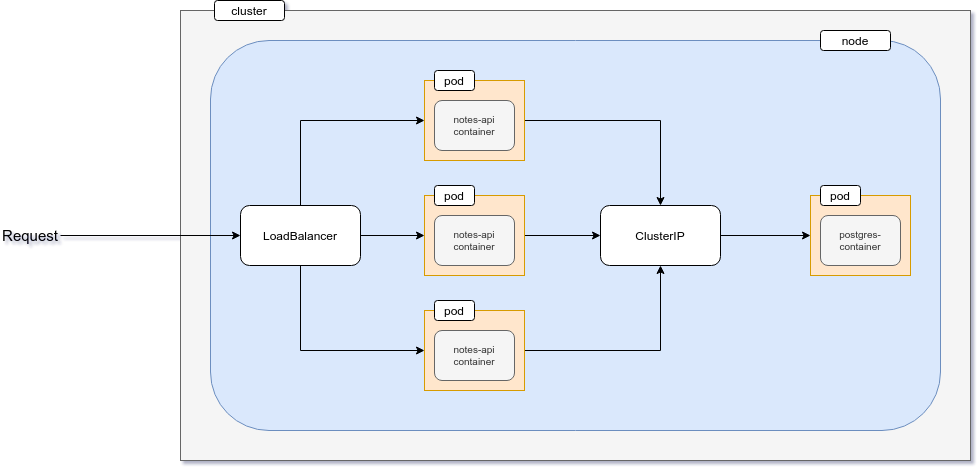

Architecture

Untitled

Note that the ClusterIP works like a LoadBalancer and can point to a single pod or a set of pods, but it can only serve requests from within the cluster

Directory Tree

app /
- (app source code, including Dockerfile)
postgres /
- (db Dockerfiles and init file)

k8s /

app-deployment.yaml

apiVersion: apps/v1 # based on docs
kind: Deployment
metadata:
    name: app-deployment
spec: # controller specs
    replicas: 3
    selector:
    matchLabels:
    component: app # all pods with this label will be controlled
    template: # container specs and metadata
    metadata:
    labels:
    component: app # all pods created will have this label
    spec:
    containers:
    - name: app
        image: app/latest
        ports:
        - containerPort: 3000
        env:
        - name: DB_CONNECTION
        value: pg
        - name: DB_HOST # use service name to reach db host
                value: postgres-cluster-ip-service
            - name: DB_PORT
                value: '5432'
            - name: DB_USER
                value: postgres
            - name: DB_DATABASE # db to be used inside host
                value: notesdb
            - name: DB_PASSWORD
                value: 63eaQB9wtLqmNBpg

postgres-deployment.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
    name: postgres-deployment
spec:
    replicas: 1
    selector:
    matchLabels:
        component: postgres
    template:
    metadata:
        labels:
        component: postgres
    spec:
    volumes: # pods' storage assignments and claims
        - name: postgres-storage
            persistentVolumeClaim:
            claimName: database-persistent-volume-claim
        containers:
        - name: postgres
            image: postgres/latest
            ports:
            - containerPort: 5432
        volumeMounts: # connect pod volumes to container
            - name: postgres-storage
                mountPath: /var/lib/postgresql/data # container dir
                subPath: postgres # dir created inside vol for container
            env:
            - name: POSTGRES_PASSWORD # used to connect to db via API
                value: 63eaQB9wtLqmNBpg
            - name: POSTGRES_DB
                value: appdb

database-persistent-volume.yaml

# Not actually used, just an example

apiVersion: v1
kind: PersistentVolume
metadata:
    name: database-persistent-volume
spec:
    storageClassName: manual
    capacity:
    storage: 5Gi
    accessModes:
    - ReadWriteOnce # mounted as r/w by one single node
    # - ReadOnlyMany # many nodes can mount it as read only
    hostPath: # development-specific, look into carefully on creation
    path: "/mnt/data"

database-persistent-volume-claim.yaml

apiVersion: v1
kind: PersistentVolumeClaim
metadata:
    name: database-persistent-volume-claim
spec:
    #storageClassName: manual # removing this dynamically creates volume
    accessModes:
    - ReadWriteOnce
    resources:
    requests:
        storage: 2Gi

postgres-cluster-ip-service.yaml

apiVersion: v1
kind: Service
metadata:
    name: postgres-cluster-ip-service
spec:
    type: ClusterIP
    selector:
    component: postgres
    ports:
    - port: 5432
        targetPort: 5432

app-lb-service.yaml

apiVersion: v1
kind: Service
metadata:
    name: app-lb-service
spec:
    type: LoadBalancer
    ports:
    - port: 3000
        targetPort: 3000
    selector:
    component: app

docker-compose.yaml

version: "3.8"

services:
    db:
        build:
            # custom image w/ app table pre-created
            context: ./postgres
            dockerfile: Dockerfile.dev
        volumes:
            - db-data:/var/lib/postgresql/data
        environment:
            POSTGRES_PASSWORD: 63eaQB9wtLqmNBpg
            POSTGRES_DB: notesdb
    app:
        build:
            context: ./app
            dockerfile: Dockerfile.dev
        ports:
            - 3000:3000
        volumes:
            - /home/node/app/node_modules
            - ./app:/home/node/app
        environment:
            DB_CONNECTION: pg
            DB_HOST: db
            DB_PORT: 5432
            DB_USER: postgres
            DB_DATABASE: notesdb
            DB_PASSWORD: 63eaQB9wtLqmNBpg

volumes:
    db-data:
        name: app-db-dev-data

Execution

Debug session example:

kubectl apply -f app-deployment.yaml

# deployment.apps/app-deployment created

kubectl get deployment

# NAME             READY   UP-TO-DATE   AVAILABLE   AGE
# app-deployment   0/3     3            0           18m2s

kubectl get -f app-deployment.yaml

# NAME             READY   UP-TO-DATE   AVAILABLE   AGE   CONTAINERS   IMAGES               SELECTOR
# app-deployment   0/3     3            0           19m   app          app/latest           component=app

kubectl get pod

# NAME                             READY   STATUS             RESTARTS   AGE
# app-deployment-d59f9c884-88j45   0/1     CrashLoopBackOff   10         30m
# app-deployment-d59f9c884-96hfr   0/1     CrashLoopBackOff   10         30m
# app-deployment-d59f9c884-pzdxg   0/1     CrashLoopBackOff   10         30m

kubectl describe pod api-deployment-d59f9c884-88j45

# (Extensive debug info)

kubectl logs api-deployment-d59f9c884-88j45

# (Logs for container -- error with image)

After fixing image:

kubectl apply -f api-deployment.yaml

# deployment.apps/api-deployment configured

kubectl get deployment

# NAME             READY   UP-TO-DATE   AVAILABLE   AGE
# app-deployment   3/3     3            3           6m

kubectl get pod

# NAME                              READY   STATUS    RESTARTS   AGE
# app-deployment-66cdd98546-l9x8q   1/1     Running   0          7m26s
# app-deployment-66cdd98546-mbfw9   1/1     Running   0          7m31s
# app-deployment-66cdd98546-pntxv   1/1     Running   0          7m21s

kubectl apply -f postgres-deployment.yaml

# deployment.apps/postgres-deployment created

kubectl get deployment

# NAME                  READY   UP-TO-DATE   AVAILABLE   AGE
# postgres-deployment   1/1     1            1           13m

kubectl get pod

# NAME                                   READY   STATUS    RESTARTS   AGE
# postgres-deployment-76fcc75998-mwnb7   1/1     Running   0          13m

kubectl apply -f database-persistent-volume-claim.yaml

# persistentvolumeclaim/database-persistent-volume-claim created

kubectl get persistentvolumeclaim

# NAME                               STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS   AGE
# database-persistent-volume-claim   Bound    pvc-525ae8af-00d3-4cc7-ae47-866aa13dffd5   2Gi        RWO            standard       2s

kubectl apply -f postgres-cluster-ip-service.yaml
kubectl apply -f app-lb-service.yaml

Short version:

kubectl apply -f k8s

# deployment.apps/app-deployment created
# service/app-load-balancer-service created
# persistentvolumeclaim/database-persistent-volume-claim created
# service/postgres-cluster-ip-service created
# deployment.apps/postgres-deployment created

kubectl get deployment

# NAME                  READY   UP-TO-DATE   AVAILABLE   AGE
# app-deployment        3/3     3            3           106s
# postgres-deployment   1/1     1            1           106s

Further Education

Kubernetes Documentation: go through “Getting Started”, “Tutorials”, “Concepts”.
Task Catalog: How to do common Kubernetes tasks.
Reference page - all things API, setup (kubeadm) and component (kubelet, kube-proxy, TLS bootstrapping, etc) tools, kubectl, etc.

Reference

The Kubernetes Handbook
