Basics

Commands

  • terraform init creates the Remote State: configures your local settings, downloads provider requirements, similar to activating a Python virtualenv
  • terraform plan compares current state with desired state
  • terraform apply makes the necessary API calls to create/delete/update the resources as needed, then polls them periodically until it is in its desired state
  • terraform graph creates a dependency graph with all resources
  • terraform destroy removes everything in the state file

Variables

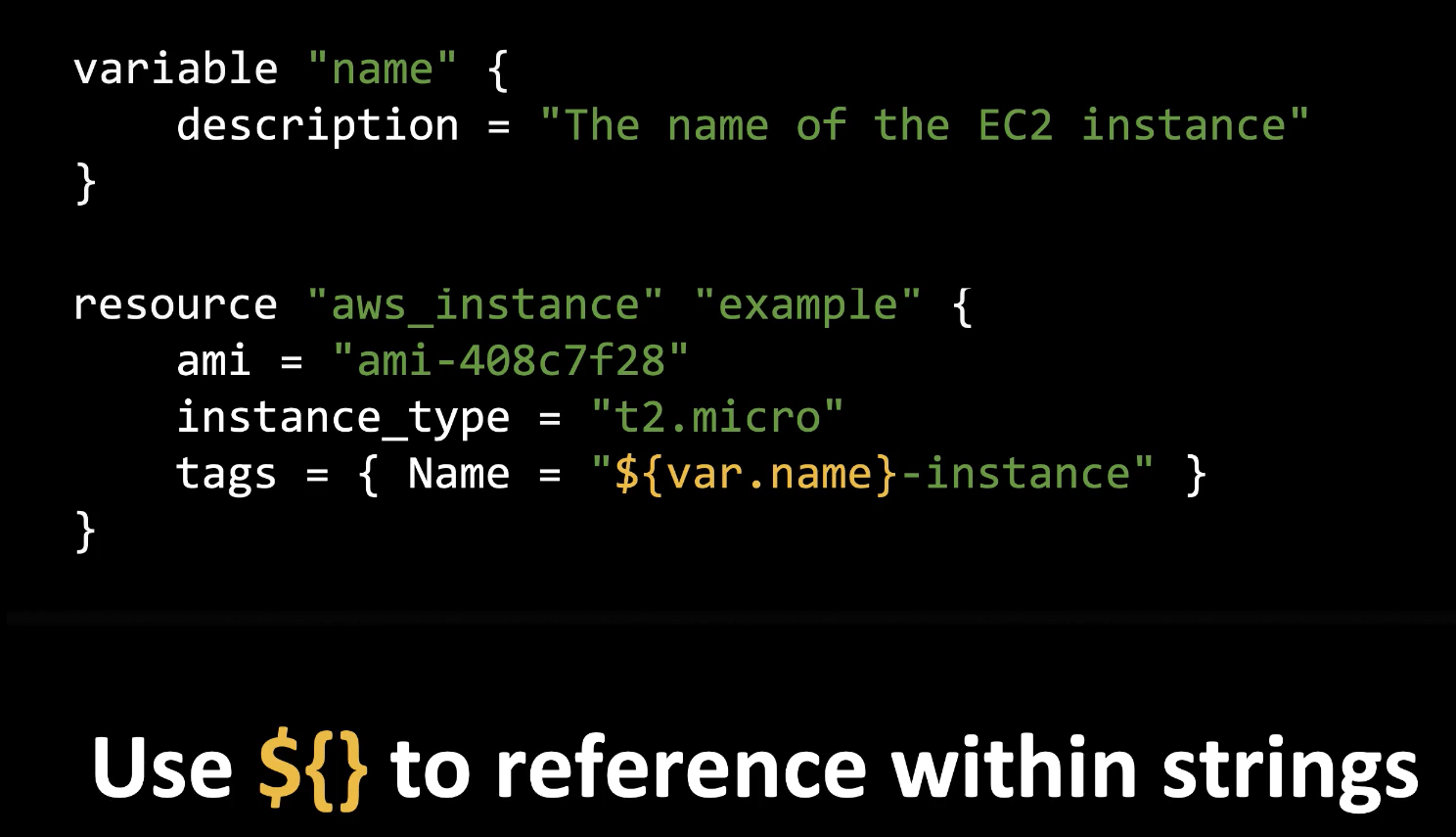

Terraform Variables

  • since there is no value declared, if you run terraform plan, it will prompt for input
  • you can declare a value via CLI with terraform apply -var name=foo, or inside terraform.tfvars: name = "foo"

Dependencies

  • reference a resource by their resource type and their name, eg: aws_instance.example1

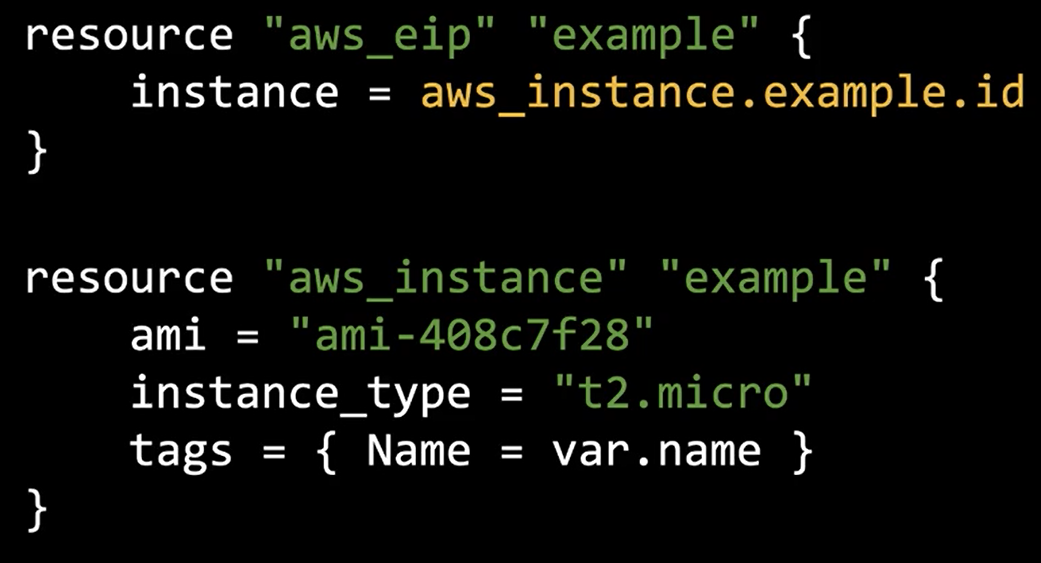

Terraform Dependencies

  • aws_eip requires an instance’s ID to be specified
  • ID is an attribute of aws_instance that Terraform discovers, sets, and exports on creation
  • terraform creates a dependency graph under the hood to figure out the order to create each resource based on dependencies, which can be viewed with terraform graph

State

  • by default, state is stored locally in .tfstate files, but state can be stored remotely (for collaboration) using S3

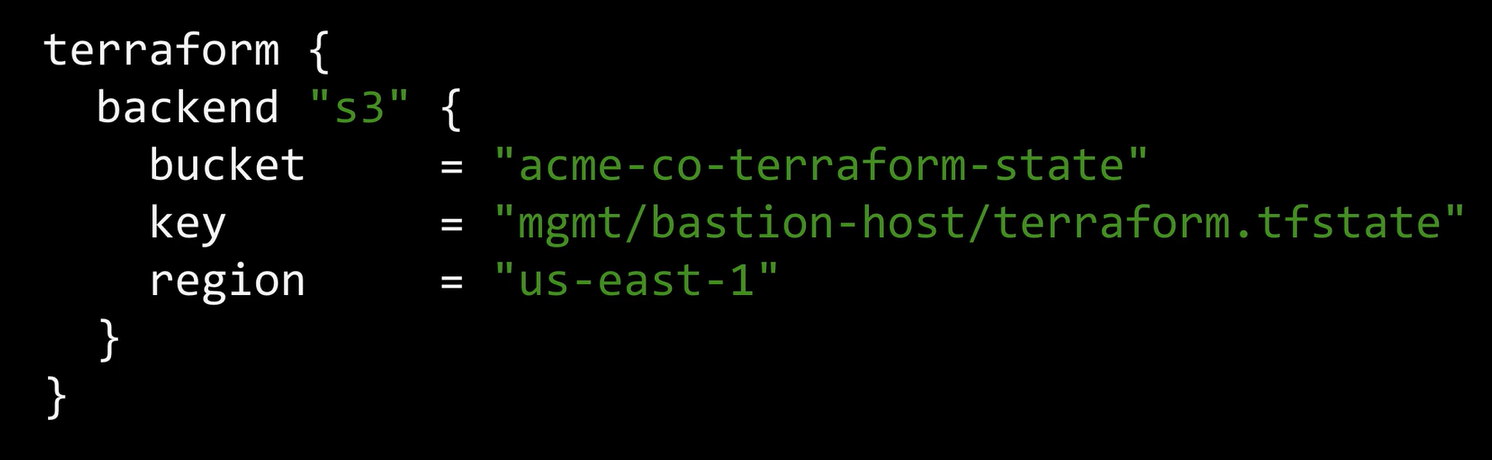

Terraform Backend

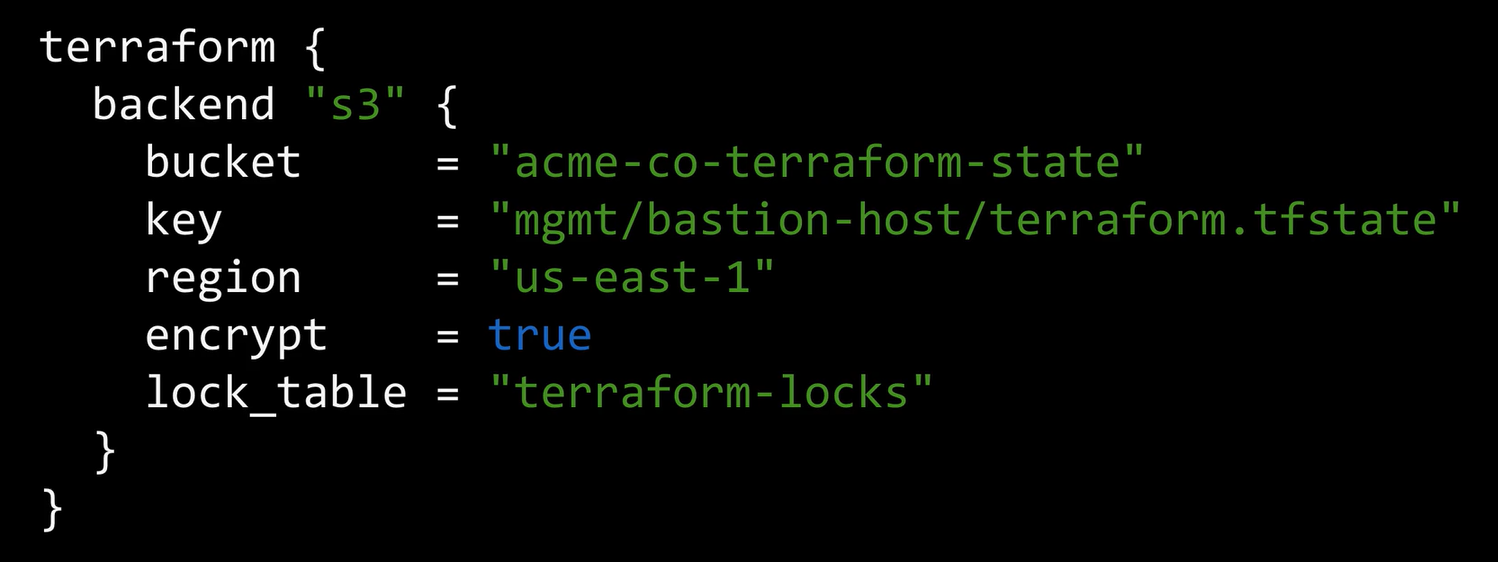

Terraform Backend with Lock

  • terraform init configures and connects to remote state storage
  • most remote backends support locking and encryption
  • locking: while using Terraform, you can request a lock and no one will be able to change the state
  • lock is stored in DynamoDB
  • encryption: terraform stores secrets in plaintext inside state file

Modules

  • collection of Terraform code that you can reuse, configure, and version control — like blueprints
  • module = folder with Terraform files
  • convention for Gruntwork modules:

    1. vars.tf - specify module inputs

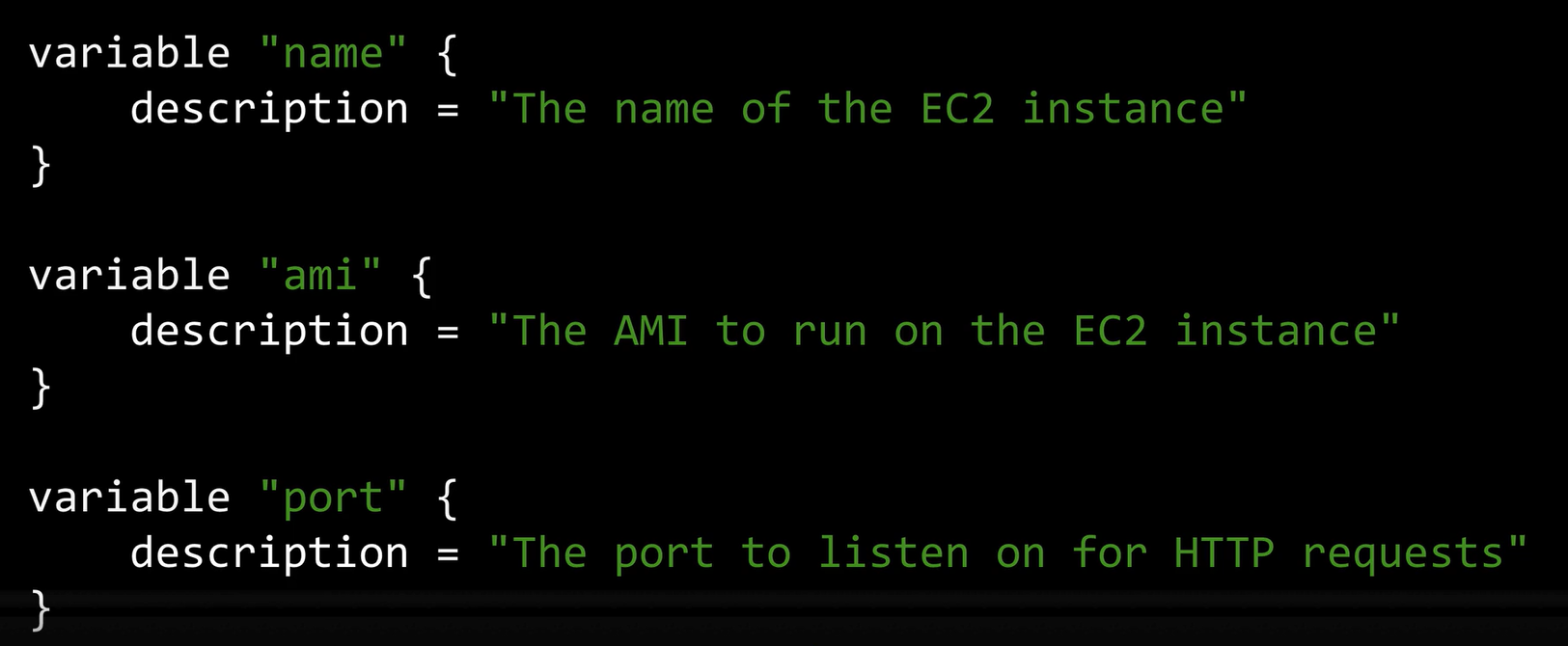

      vars.tf Example

    2. main.tf - create resources

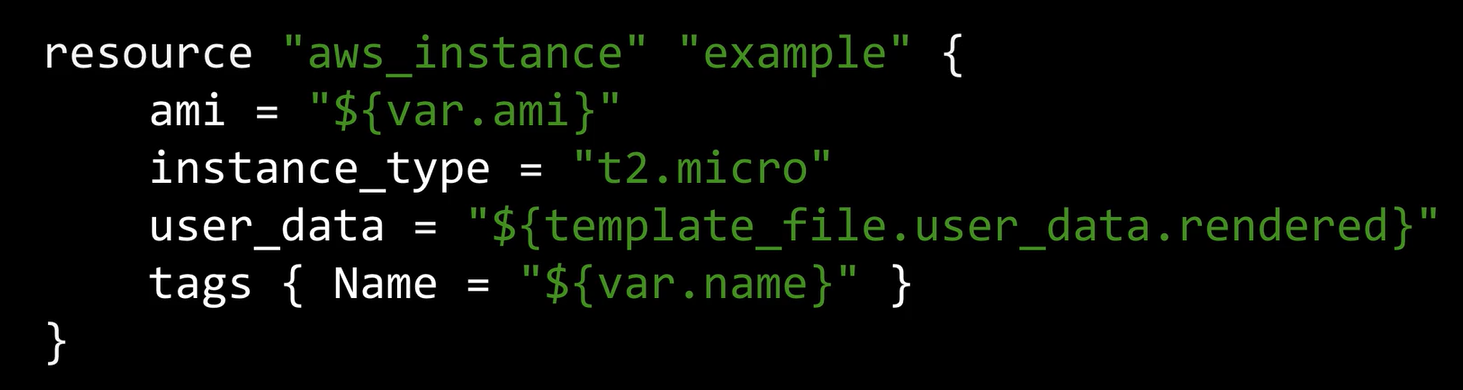

      main.tf Example

    3. outputs.tf - specify outputs (can be used as input for other modules)

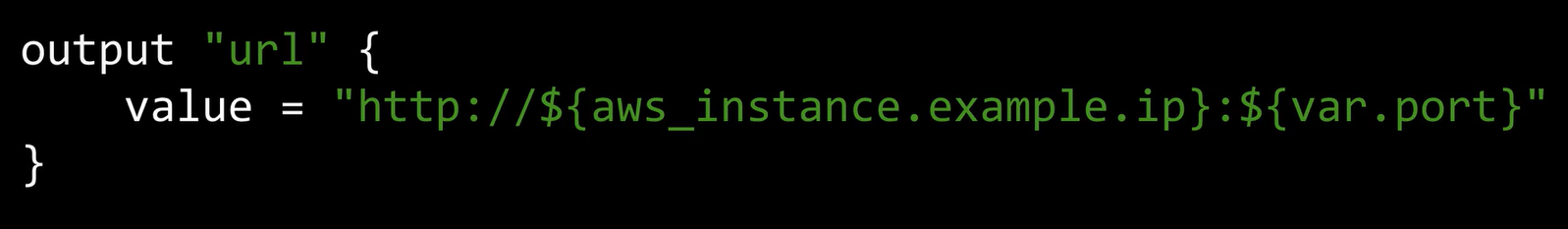

      outputs.tf Example

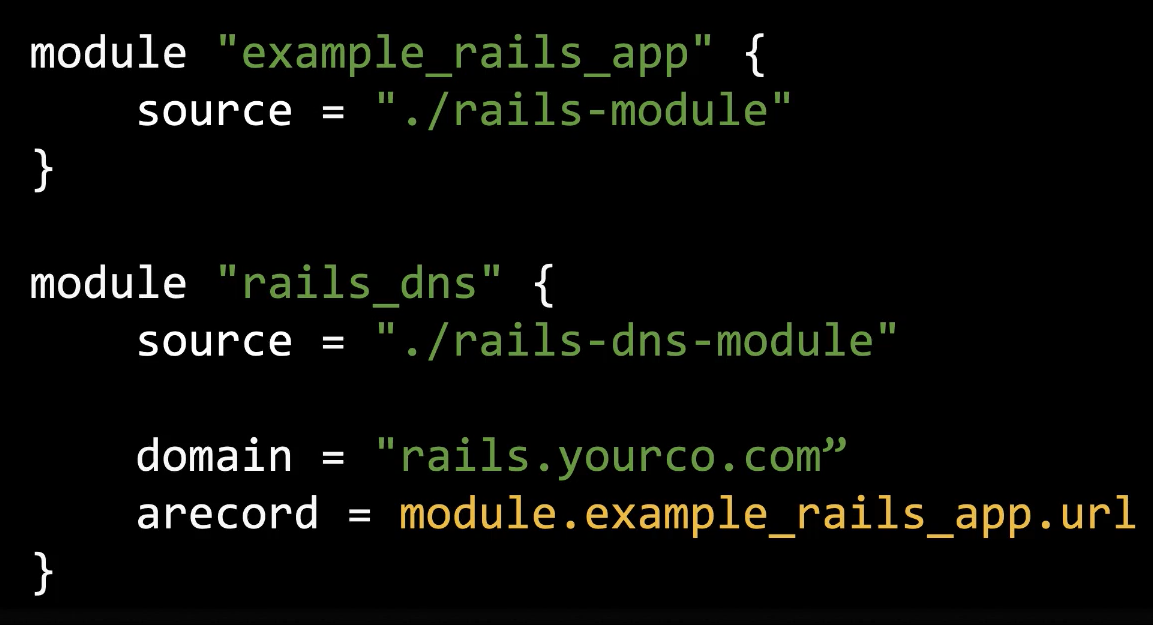

Terraform Module Code

  • a source can be a directory or URL
  • reference module outputs as attributes of that module
  • the module block needs to specify values for variables that don’t have default value — it cannot be passed via CLI and will not be prompted during plan/apply

Example

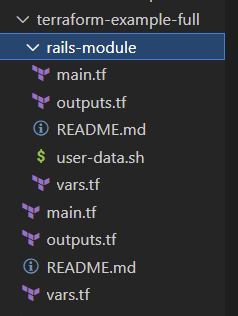

Terraform Module Directory

  • ./main.tf - only three block types: terraform (version), provider “aws”, and module blocks w/ the module’s variables specified inside the block
  • ./vars.tf - declaration (no values) of variables used inside main.tf. Since there’s no terraform.tfvars, the values will need to be passed via CLI or prompt
  • ./outputs.tf - outputs values from a module’s output via module.module_label.output_label
  • ./rails-module/main.tf - has terraform (version) and resource blocks, no provider block needed
  • ./rails-module/vars.tf - variables used in [./rails-module/main.tf](http://main.tf) and declared here need to be addressed inside module block (see ./main.tf)
  • ./rails-module/outputs.tf - outputs values from ./rails-module/main.tf via resource_type.resource_label_attribute

Module Community Standards

  • variables.tf instead of vars.tf
  • description property to each variable and output + a README file

Best Practices

  • plan before apply
  • stage before prod

  • isolated environments

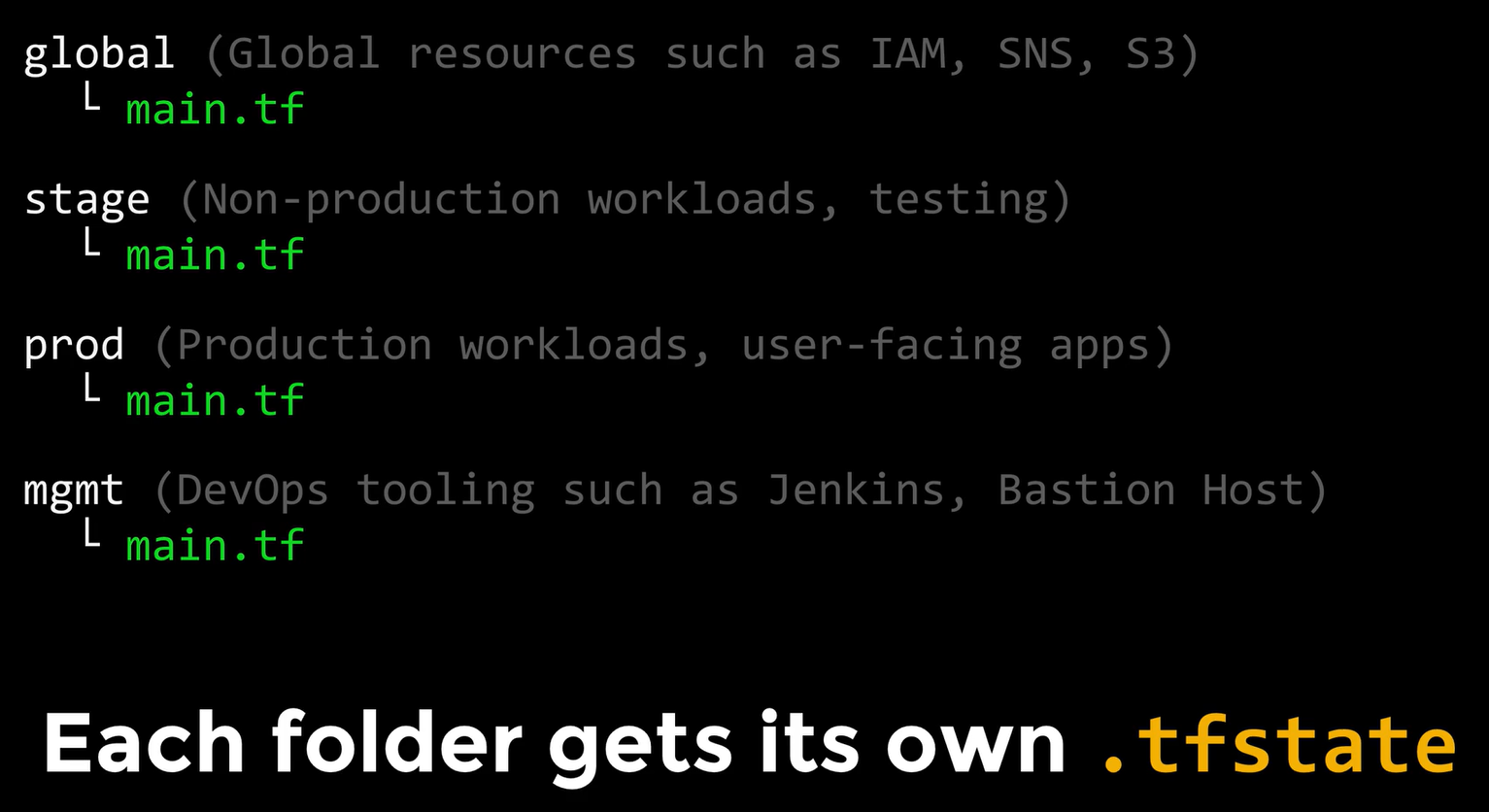

    Terraform Module Environment

    • there is a special data source called terraform_remote_state that shares state between environments — you can read outputs from one environment into another
  • use versioned modules

    • if modules are defined in a separate repository, different environments can use different versioned URLs

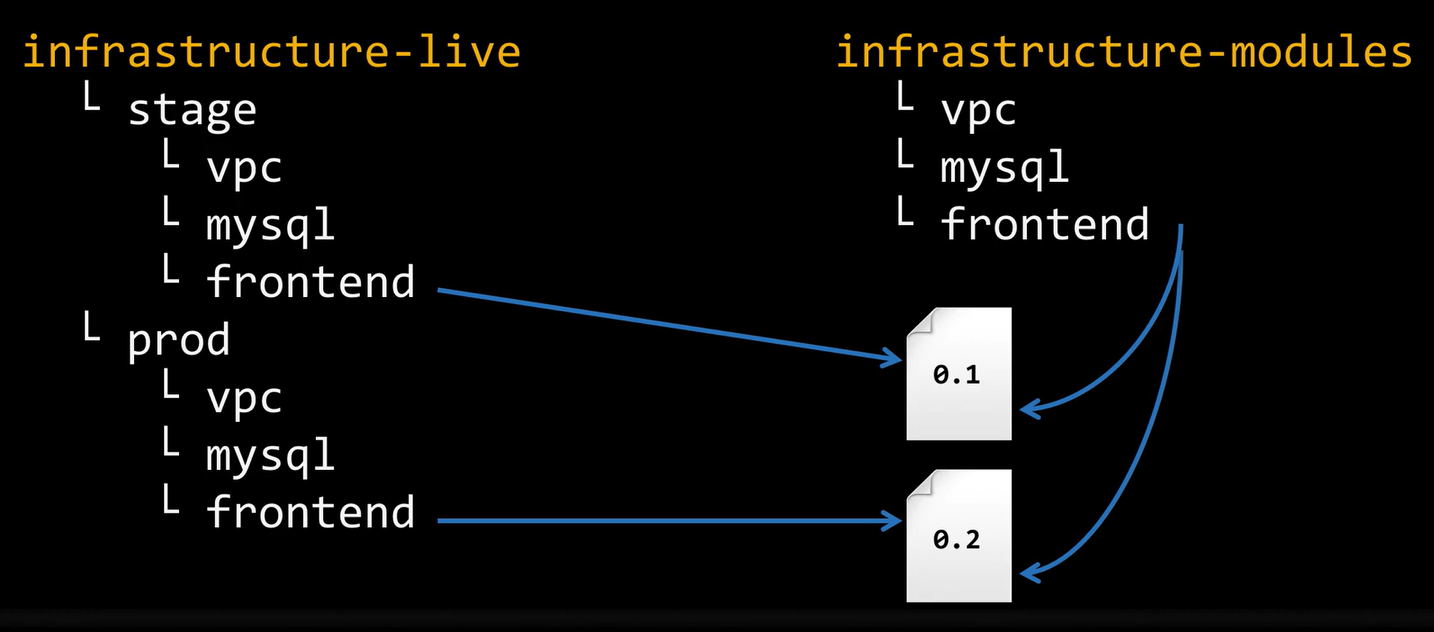

      Terraform Module Version

    • the source URL supports versioning using the ref parameter to point to a tag or a commit ID

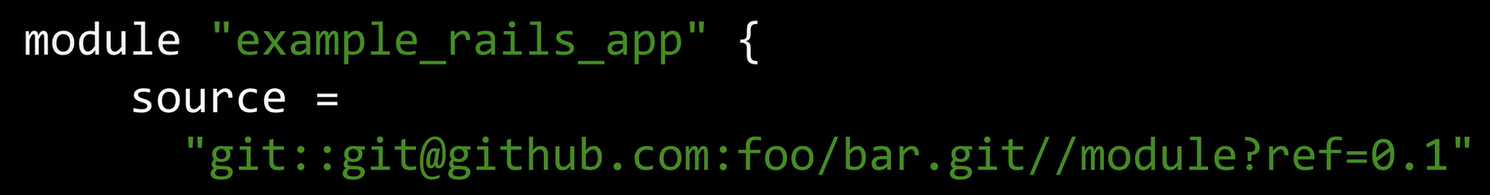

      Terraform Module Source

  • use remote state
    • you have to create the bucket yourself — enabling versioning is recommended
      • the lock table is automatically created
